0.8mm Roof Wall Panel Roll Forming Machine Color Coated Aluminum Soffit Fascia Flush Liner

Brand Name : Sussman

Model Number : SM-RP

Certification : CE ISO SGS

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T L/C

Supply Ability : 10 sets per months

Delivery Time : 65 days after deposit

Packaging Details : Standard packing

Type : Facade Reveal Roof Wall Panel Roll Forming Machine

Roller statione : 16 stations

Main Motor Power : 7.5kw

Way Of Drive : 1.2 inch single chain

Speed : 0-10 Meters/Minutes

Contact Now

0.3mm-0.8mm Thickness Color Coated Aluminum Soffit Fascia Flush Reveal Roof Wall Panel Roll Forming Machine

Reveal panels are designed for wall, fascia and soffit applications where a flush or flat appearance is desired. A rounded interlock leg and concealed fastening system improves the flush appearance while providing additional strength. Panels are factory-formed to length to minimize field cutting. Flush panels are designed to complement roofing panel product line.

Technical parameter:

Item NO

Description

Offered specification
1.0 Roll forming machine
1.1 Rolling speed 12-15m/min(not include cutting time)
1.2 Rolling thickness 0.3mm-0.8m
1.3 Raw material Color painted coils, Aluminium, Zinc, Galvanized
1.4 Main Motor 7.5KW
1.6 Dimension About 8000×1600×1200(mm)
1.7 Effective width 1000mm
1.8 Feeding Coil width 1219mm
1.9 Roller stations

About 18 stations
1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter Φ76mm
1.12 Transmission By chain 1.2 inch
1.13 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 10m+-1.5mm
1.16 Hydraulic station 4kw


Machine List:

5 tons passive de-coiler
1 set
Main roll forming machine
1 set
PLC Control box
1 unit
Hydraulic station
1 unit
Safety cover
1 set
Spare parts
1 set


working flow

0.8mm Roof Wall Panel Roll Forming Machine Color Coated Aluminum Soffit Fascia Flush Liner

Profile Drawing

0.8mm Roof Wall Panel Roll Forming Machine Color Coated Aluminum Soffit Fascia Flush Liner

0.8mm Roof Wall Panel Roll Forming Machine Color Coated Aluminum Soffit Fascia Flush Liner

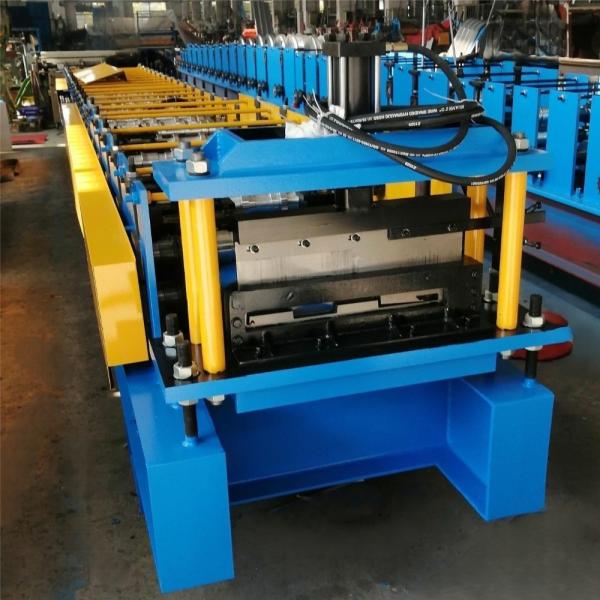

Machine Shows

0.8mm Roof Wall Panel Roll Forming Machine Color Coated Aluminum Soffit Fascia Flush Liner



Application

Reveal is stronger and easier to install than using flat sheets. When using flats sheets on a job it is a design build application. Western Reveal has an install guide that has solutions for all of your common jobsite conditions.

0.8mm Roof Wall Panel Roll Forming Machine Color Coated Aluminum Soffit Fascia Flush Liner

0.8mm Roof Wall Panel Roll Forming Machine Color Coated Aluminum Soffit Fascia Flush Liner
